Brand Name : GOWELLDE
Model Number : TIG400PIJ
Certification : CE
Place of Origin : Shenzhen, Guangdong China
MOQ : 100 Pieces
Price : NEGOTIATION
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 30000PCS/MONTH
Delivery Time : 30 day
Packaging Details : Plain or Colorful Carton
Type : TIG WELDER
Model NO. : TIG400PIJ
Material : Stainless Steel, Low-Alloy Steel
Current : Direct Current
Transport Package : Standards Sea Carton or Customized
Specification : CE
No-load voltage (V) : DC75
Size : 520*263*415
Mosfet Inverter Technology TIG DC MMA Welder
TIG DC/MMA Features:
1. Adopting 100KHz MOSFET inverter technology, extremely reliable.
2. Adopting high-frequency increasing voltage arc striking technology, easy arc striking, well recognition with users.
3. Unique output characteristics design, suitable for wire filling welding, perfect welding results.
4. Dual welding process: TIG DC/MMA.
5. Auto-protection against over-voltage, over loading and over-heat, reliable and durable.
6. Wide working voltage range,high duty cycle, more suitable for factory work continuously.
parameters
Item | TIG400PIJ | |||
Input power source(±15% 50/60HZ) | 1~AC380V | |||
Rated Input current (A) | TIG:20.1 MMA:27.6 | |||
Rated input power capacity (KVA) | TIG:13.2 MMA:18.2 | |||
Output current range (A) | 10-380A | |||
No-load voltage (V) | DC75 | |||
Rated duty cycle (%) @40ºC | 60 | |||
Efficiency (%) | 85 | |||
Power factor (cosφ) | 0.93 | |||
Protection class | IP21 | |||
Insulation class | 34 | |||
Dimensions (mm) | 520*263*415 |
![]() |

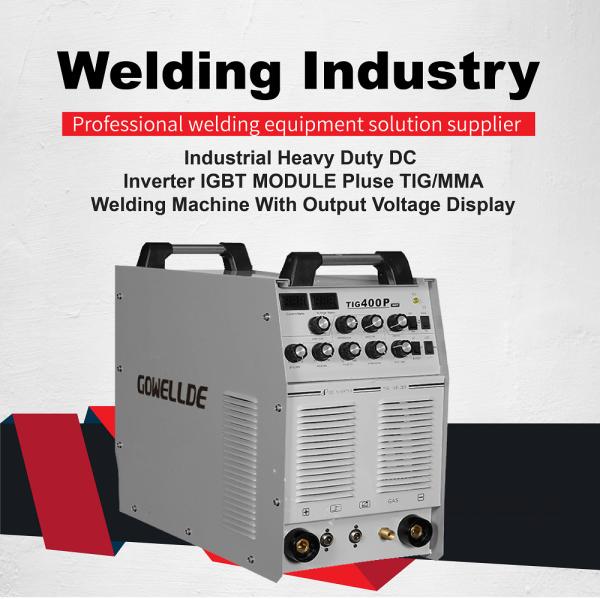

100KHz Mosfet Inverter Technology TIG MMA Welder DC High Frequency Images |
