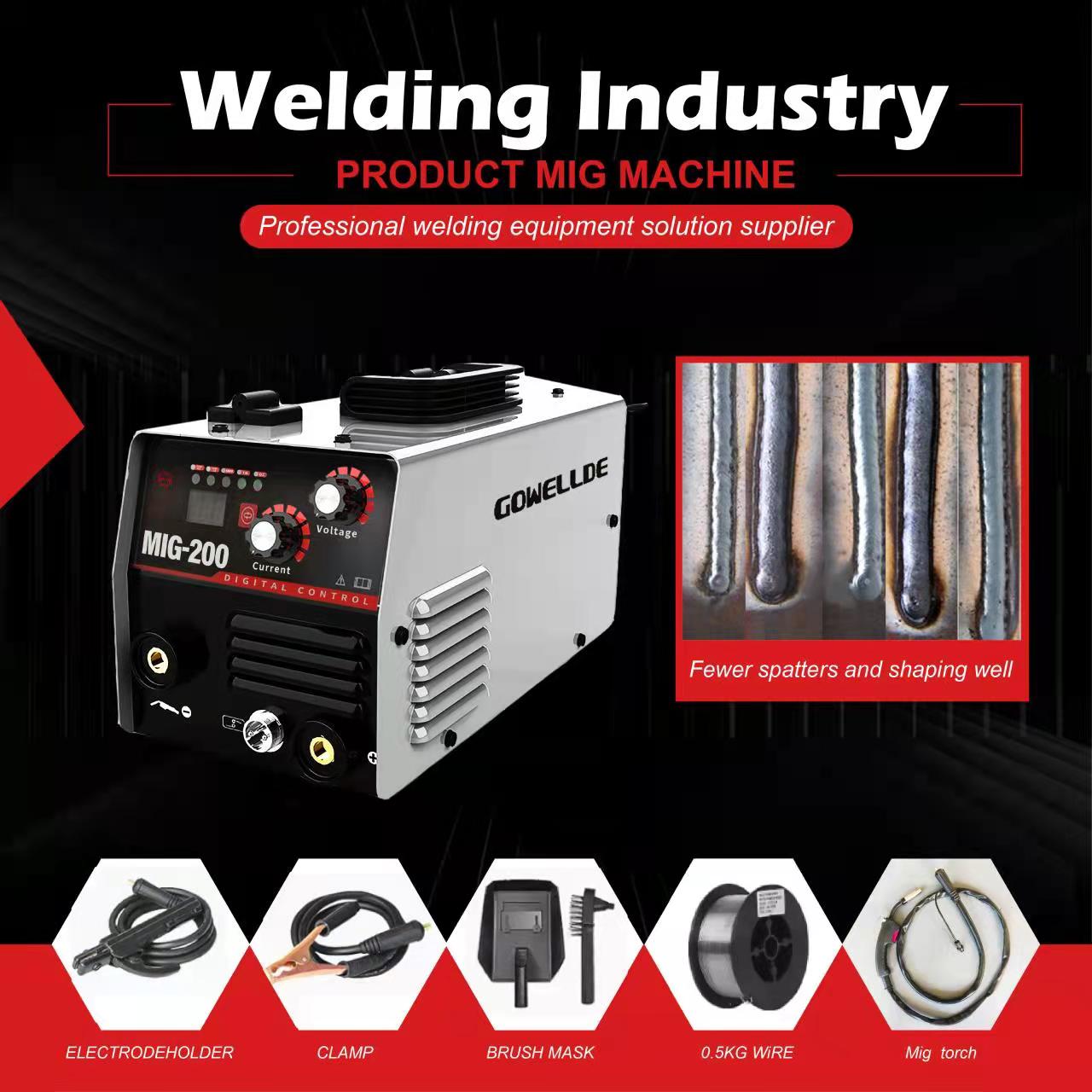

NO GAS FLUX WIRE MMA INVERTER MIG 200 GASSLESS INVERTER DC MIG WELDING MACHINE
Welcome to visit our showroom! It's my honor to introduce you our product.
Company Information:
Shenzhen General Welder Technology Co., Ltd, located at Shajing Subdistrict, Bao'an district, Shenzhen city which is the core city for the inverter type welding and cutting machine. We focused on developing, marketing all kinds of
welding and cutting machine and its related goods.
We have below series products:
*ARC welder series, including DIY product, light industry product, and heavy industry product.
*TIG welder series, including TIG&ARC series, TIG pulse series, TIG AC/DC series,
*MIG welder series, including integrated one and separated one, also the pulse MIG machine.
*Plasma cutting machine series including DIY series and heavy industry usage cutting machine.
*Submerge ARC welding machine.
We can also supply you the good quality spare parts of the welding machine. And the accessories of the welding machine.
Aiming to provide the best quality product at a competitive price for you. We want long and strong cooperation relationship with you, not short time.
Quality goes first, Price goes later. With quality and price, We can help your business grow up more quickly.
Last year our overseas market turnover is more than 30 million. We are aiming to do double this year.
Welcome, my friend. We are here and waiting for your inquiry.
Thanks and Best regards!
| FEATURES |
| · Mutifunction,with MIG/ARC/TIG welding mode |
| · Single phase, 1kg fiux wire welding machine for flux(no gas)welding. |
| · Auto protection of over-voltage and over-current. |
| · Suitable for 0.8 carbon steel welding wire,1.0mm flux wire |
| · Use MCU control circuit, many choices of welding technics, could precisely adjust output parameters. |
| · For welding different types of materials such as steel, stainless steel,alloy and other metal material |
| TECHNICAL PARAMETERS |
| Item | MIG200 |
| Input power source(±15% 50/60HZ | 1~AC220V |
| Rated Input current (A) | 18.3 |
| Rated input power capacity (KVA) | 4 |
| Output current range (A) | 50-120 |
| No-load voltage (V) | DC65 |
| Rated duty cycle (%) @40ºC | 55 |
| Efficiency (%) | 80 |
| Power factor (cosφ) | 0.73 |
| Protection class | IP21 |
| Insulation class | F |
| Dimensions (mm) | 350*155*190 |
| Weight (Kg) | 3.8 |
Product Tags:
|
|
Gassless IP21 MIG MMA Welder 200A DC MIG Welding Machine F Insulation class Images
|
